AOR 7030 plus HF Receiver

Analog Receiver....0 to 32 MHz

The AOR 7030 is one of the best ANALOG receivers you can lay your hands on. Sherwood Engineering rated in the "Top Ten" for a long time. I run mine primary 7030 in tandem with my Kenwood 870, the AOR as the receiver and the 870 as the transmitter. Works very, very well.

. The AR7030+ represents the very latest and best design featuring exceptionally strong signal handling and bristling with enhanced features. The AR7030+ has been designed to handle strong close in signals . It offers greater than +35dBm IP3 and 104dB dynamic range (SSB, 2.2kHz, 20/40kHz spacing). Many features includet: Synchronous AM, Passband Tuning, four levels of attenuation, dual VFOs and 24 hour clock-timer. The 400 scannable memories store frequency, bandwidth, PBS, Squelch and BFO settings. The mini headphone jack will accept a mono or stereo 3.5mm plug. The two line 48 character backlit LCD gives you the status of the receiver.

The AR7030+ comes with six bandwidths. They internally calibrate out to ...1.7KHz....2.2KHz....2.8KHz....5.5KHz and 9.5KHz. Amazingly the 1.7 filter with the radio longated Pass Band Tuning make this filter on SSB sound like most 2.4-7 filters....Very clean and clear with no distortion or tighness.

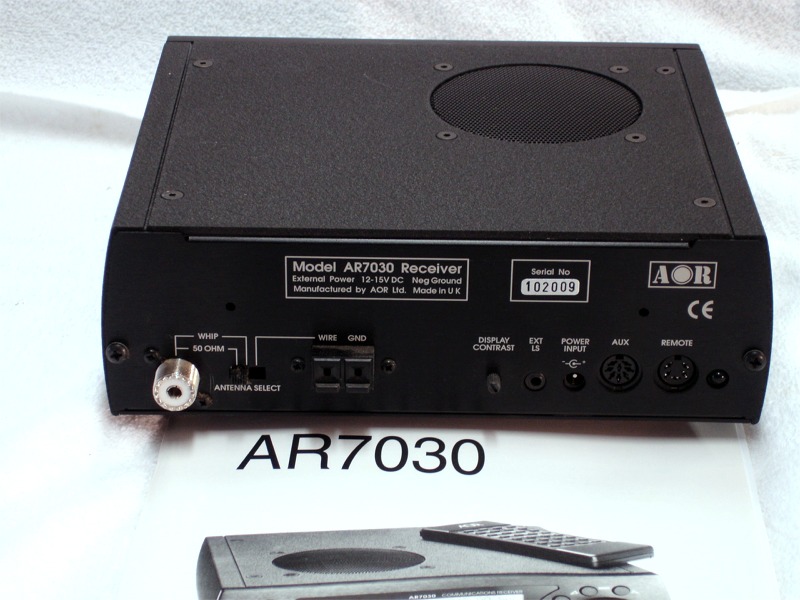

The supplied full-featured 32 button IR7030-2 infra-red remote provides access to virtually all facilities including: volume, tone, numeric keypad, memories, PBT, filter selection, etc. A remote RS-232 level port (5 pin 240° DIN) is also provided for computer control on the back panel. The Auxiliary Socket provides audio and timer outputs plus 455 kHz IF Output. The AR7030+ is similar to the AR7030, but with high tolerance components, 400 alphanumeric memories, enhanced RF attenuation and improved filters. Made in England. Also has stateside service.

This was my backup to my now in line running AOR. It comes with the remote control and the special high voltage 13.8v power supply.

Comes with remote control and setup and calibration manuals.

Very little use..it just sat, ready to go as a back up unit!!

The serial number 162009, shipping packaged weight is 13 pounds. Comestic condition is A#1.

With the custom filer and upgrade boards, I have close to $2000.00 invested..... But the unit is discounted.. and I ship!!

Unit works very well, and is sold "as Is" ......

Payment via PayPal
